Value-creating solutions
Search-B
Beacon / NFC
OVERVIEW
Research, development and manufacture of industrial remote I / O module for smart factory related to the 4th industrial revolution
FEATURE 01
Modules with
various support
!
1
1
CANOpen
Standard Support
EtherCat
Passed conformance check
Firmware
Update Support
EtherCAT
DC Sync Support
Input digital
Filter support
ZigBee
Wired / wireless public (optional)
Smallest size
(W:126xD:90xH:22))
DC 12, 24, 48V
Support for all power sources
Visual C++, C#
Delphi DLL support
Powerful output
drive current
32Bit Low-speed counter
Supports 8 ~ 32 channels
Double expansion structure
AS, Reduced maintenance
The largest (40 types)
Product Lineup
1
1
FEATURE 02
Leader in Remote I / O
module Best in class
!

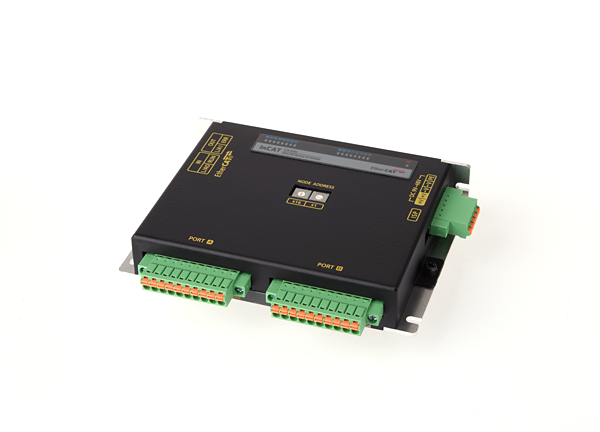

EtherCat Remote I/O
Digital product appearance

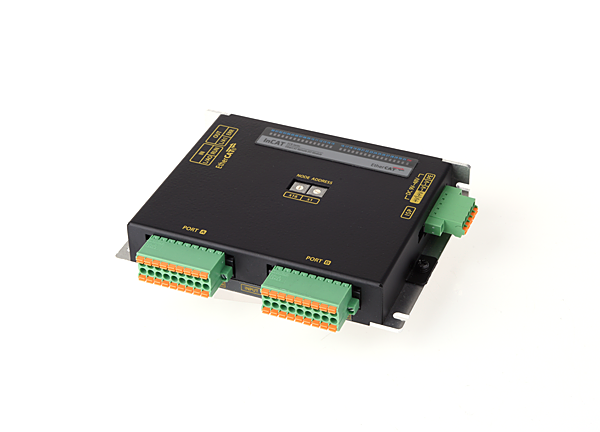

EtherCat Remote I/O
Analog product appearance
Provides free motion library (DLL), (simple PC control) (supports Visual C ++, C #, Delphi, C ++ Builder example)
Design of Dual Expansion Structure
(AS, reduced maintenance costs)
Output Drive current Equivalent 24V / 2A per channel maximum
Input / output drive voltage Max. 30V (Option Max. 50V)
Product supply voltage range DC 9V ~ 48V
EtherCAT Conformance tested
CANOpen Standard Support (CoE)
Firmware update support(FoE)
DC support
Input module Digital debounce filter 7 points support
Input module Low speed counter Supports 8 ~ 32 points(Max 1kHz)
Support output output function in case of output module communication error
H/W(1~255), S/W(1~65535)Node address support
Size Smallest size(W:126 X D:90 X H:22)
Supports wired / wireless triple network(Wireless ZigBee Option)
